Haslingen Steel Mill / Stahlwerk Haslingen

Update for Haslingen Steel Mill, Status: June 2015

Since the FREMO americaN meeting Lauffen 2011, module builder Jan made good progress on his Steel Mill. The first update shows the status of the Prague Meeting, October 2011.

The status of the americaN meeting in Lauffen, May 2013 is here.

Following is the Status of June 2015:

Lauffen 2015, americaN FREMO meeting

For the overview about Lauffen 2015 meeting, click here.

operating as Haslingen Steel, 2015, June

(more photos of operating you will find here)

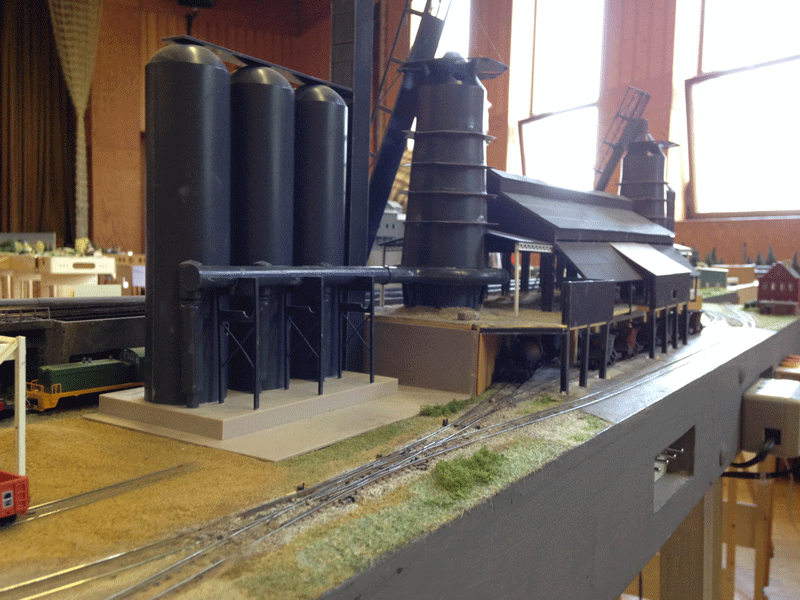

Blast Furnace

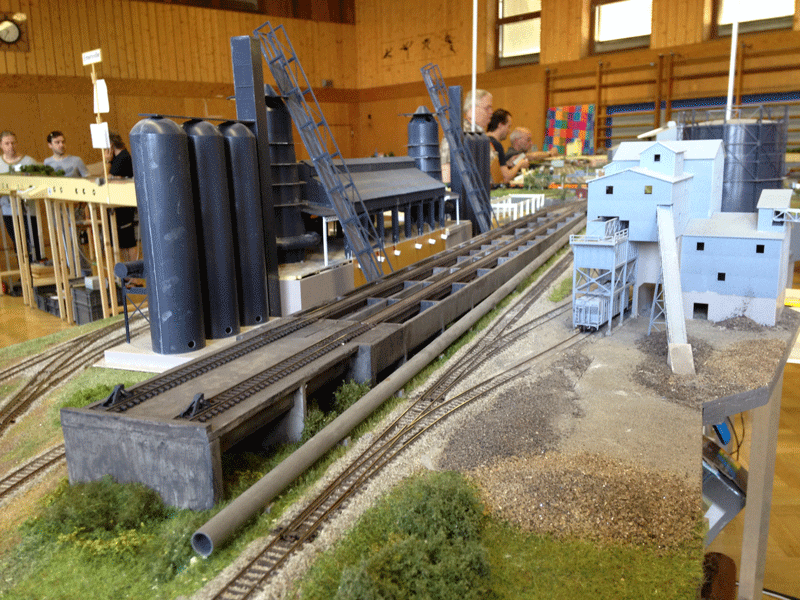

on the left: "Input" side of Blast Furnace, with raw material delivery basins

mainline passing in the middle

on the right: Slag Mill

What is what?

photos above + below

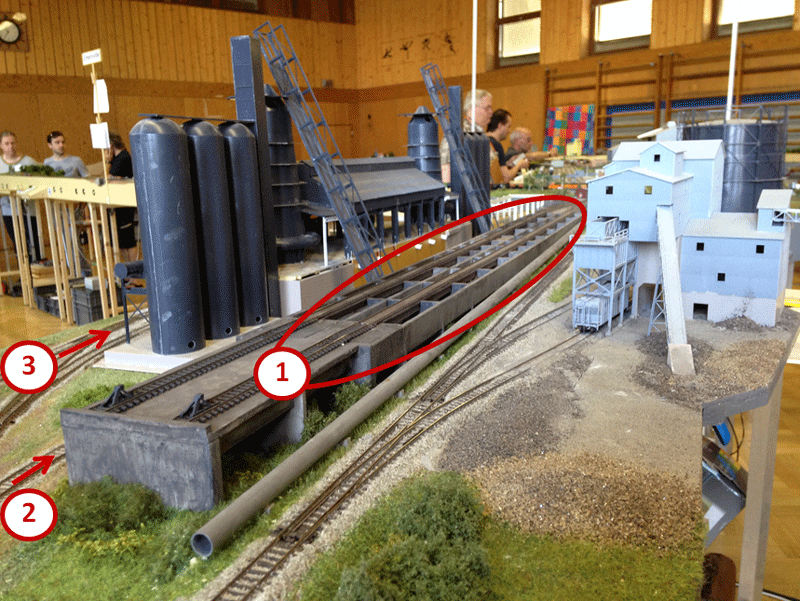

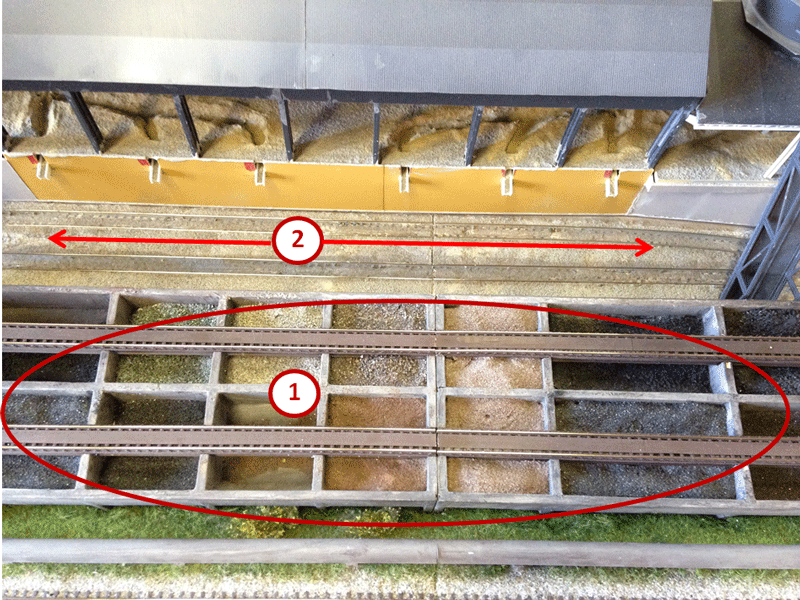

(1) input side: "Highline": the raw material input basins

(2) output: tracks for liquid slag

(3) output: tracks for liquid iron

at (2): liquid slag is transported to the liquid slag cars (cars not to be seen in this photo) by flowing through the sand channels

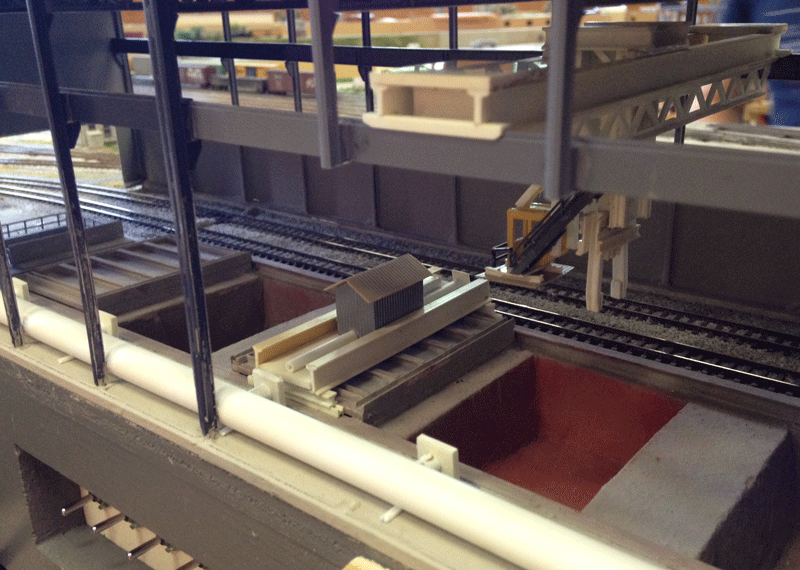

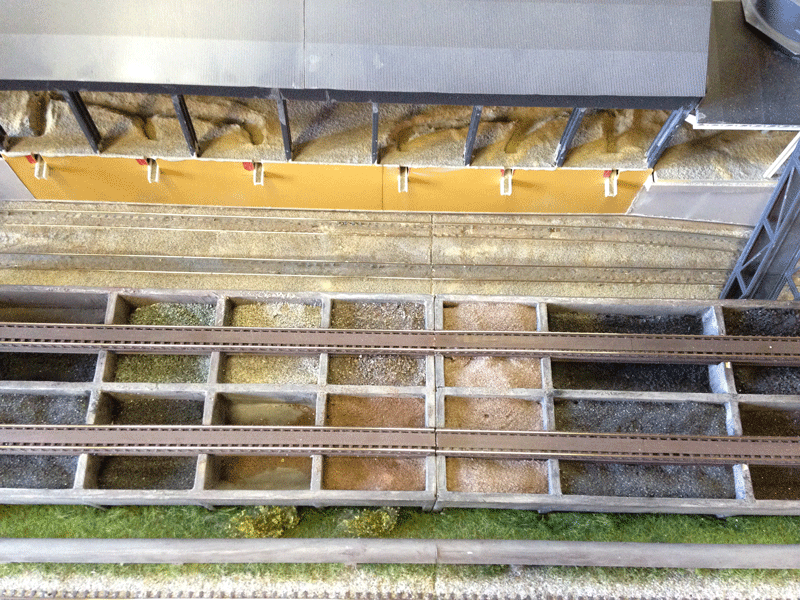

raw material delivery basins, the "overhead bins"

 other side of Blast Furnace: the "Output" side of liquid iron

to be seen on this track: "Hot Metal Cars"

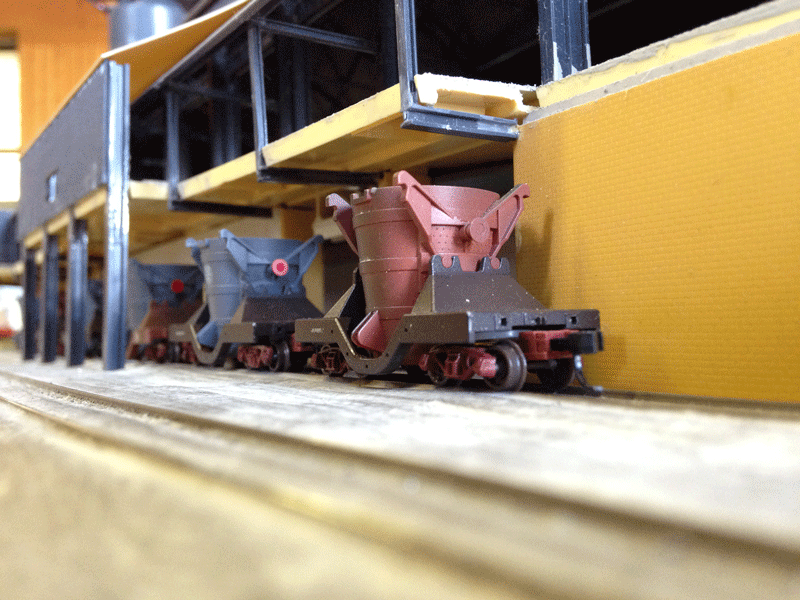

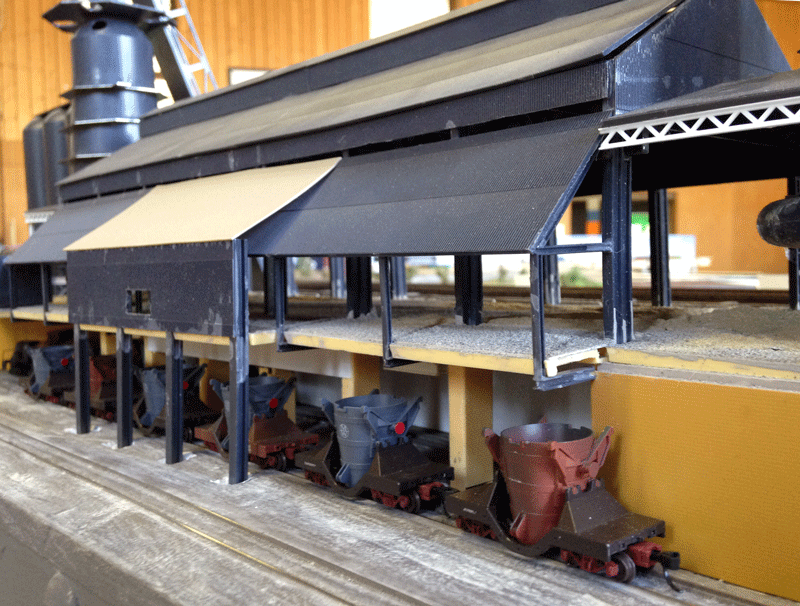

 Hot Metal Cars (for transportation inside this steel mill)

 looking from the other side: "Hot Metal Cars" at track two, "Bottle Cars" on the third track

 Bottle cars can be used for "long range transportation", between Steel Mills or Steel processing plants.

 Tracks two and three can both load Hot Metal Cars and Bottle Cars

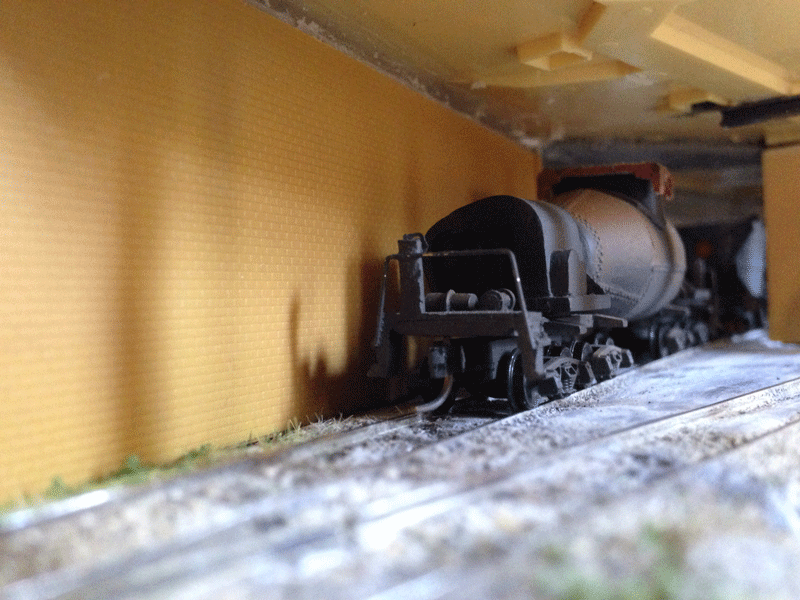

"bottle cars" (or "torpedo cars") for liquid iron

Some of the details of the loading equipment can be seen by now (if you take a really close look), more will be added

Liquid Slag treatment

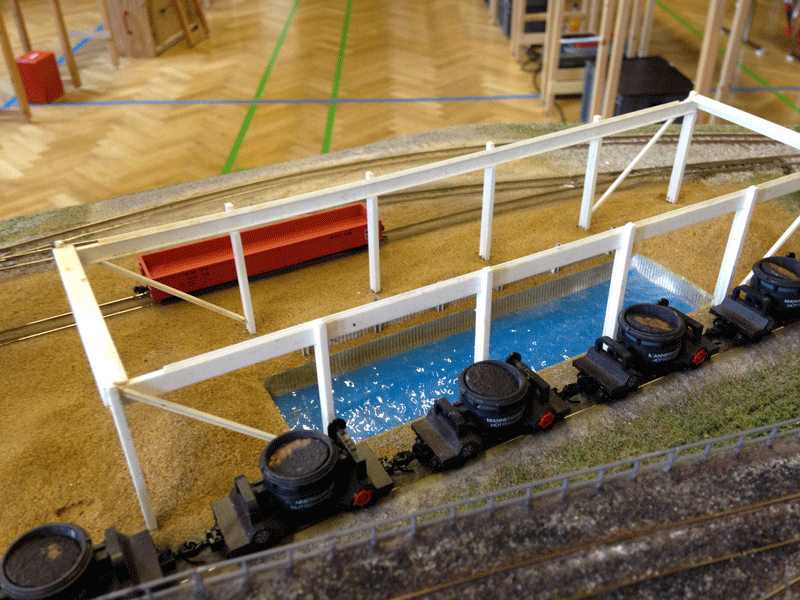

not a good place to go swimming: the pool to burst liquid slag by quenching

Power Plant of Haslingen Steel

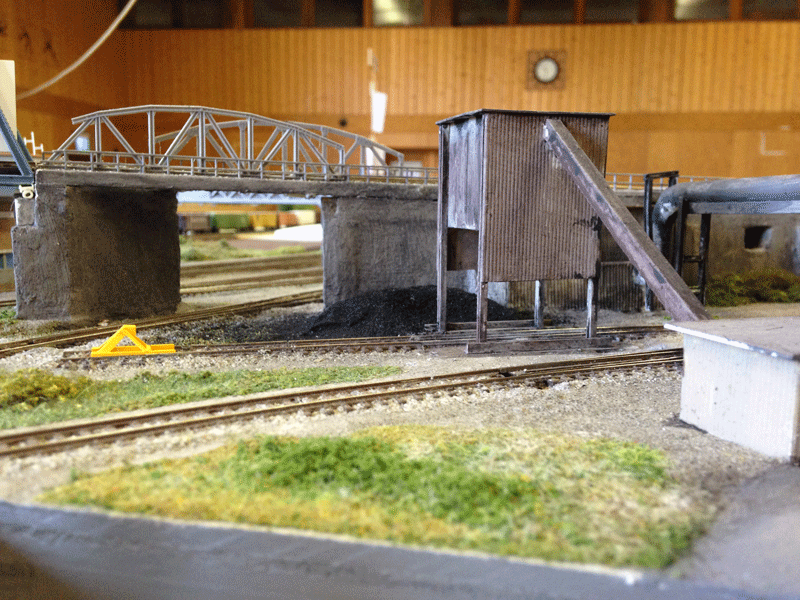

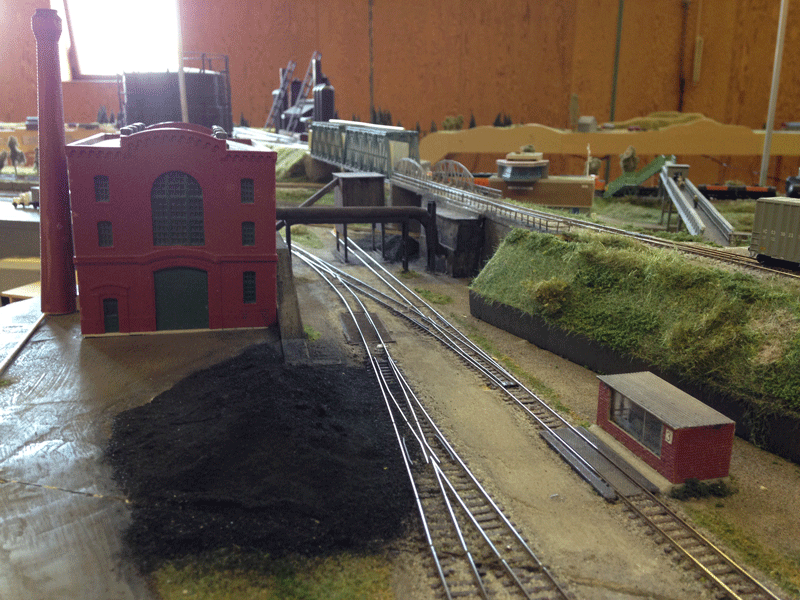

Power Plant

Power Plant: ash loader

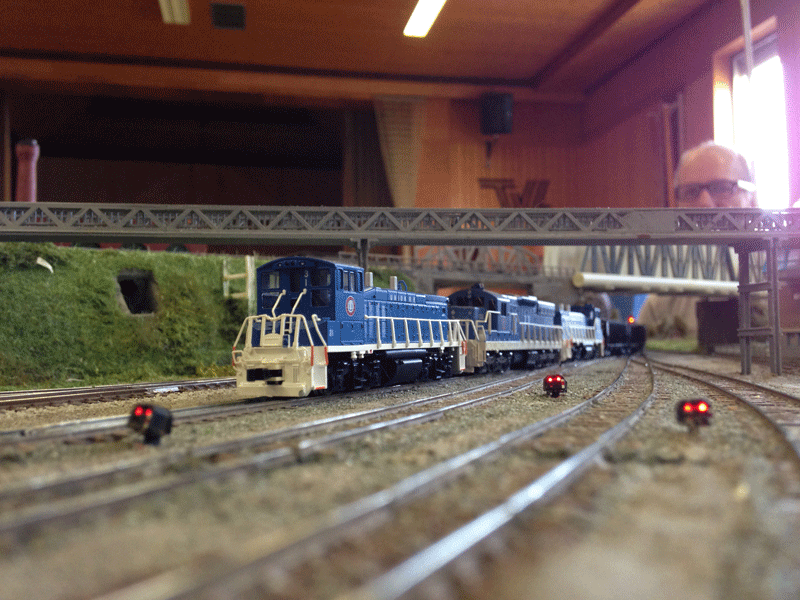

Moving from one processing step to the next

big power is needed for the movements inside the plant

and a lot of track

Scrap arrival

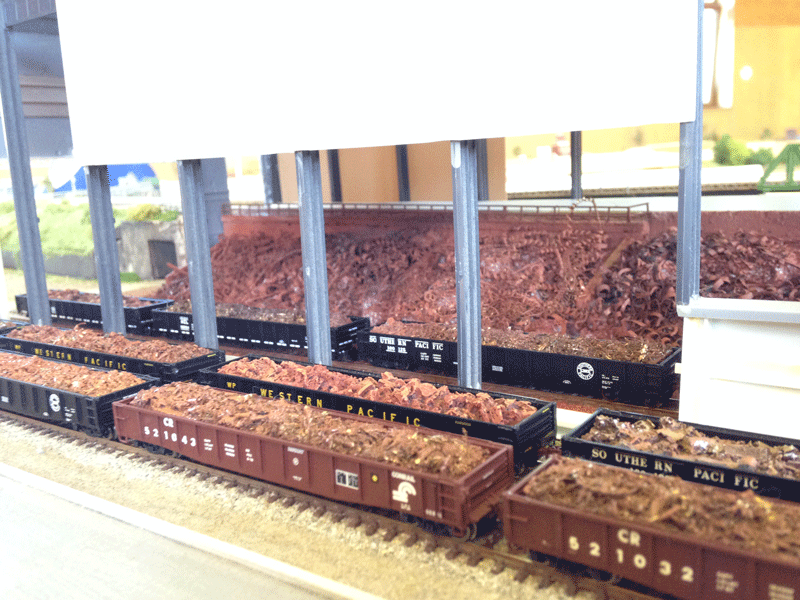

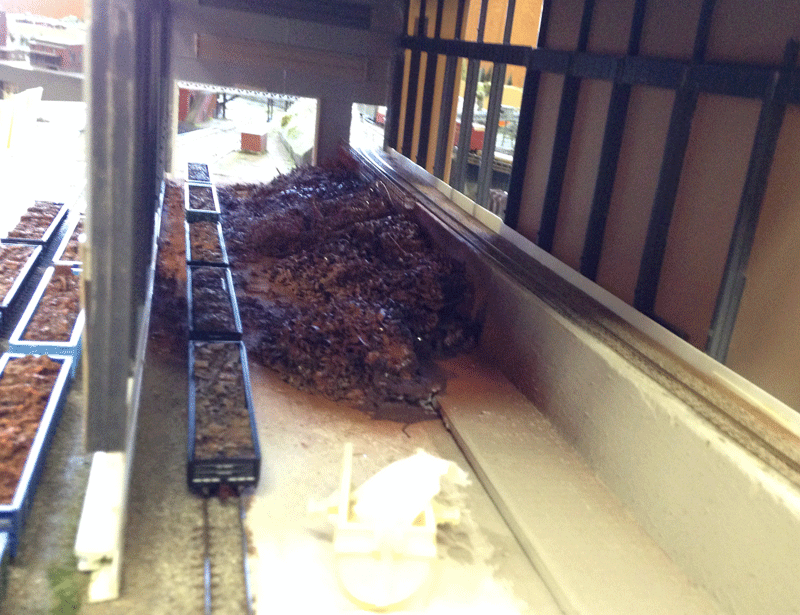

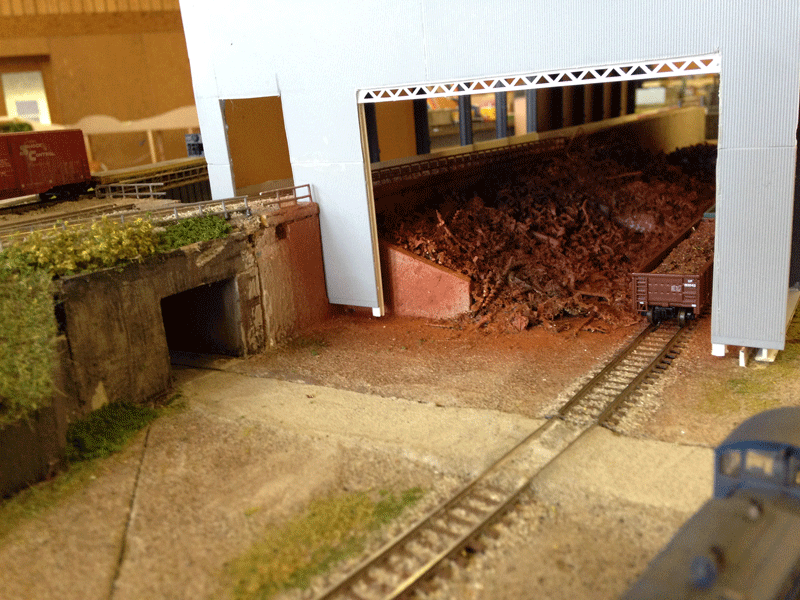

arrival of scrap

 Scrap processing: electric furnace

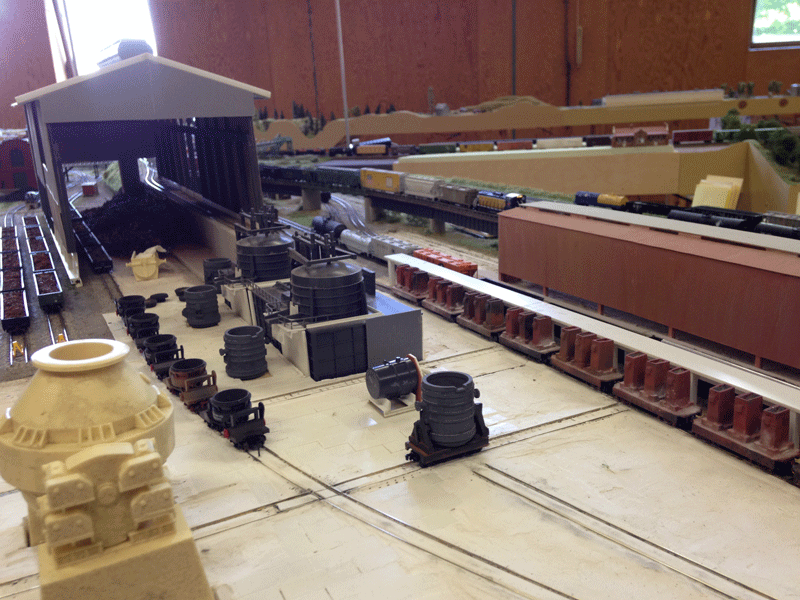

work in progress: set up of Electric Arc Furnace + Basic Oxygen Converter

Ingot Cars on the right: liquid steel is filled into them, then these cars transport the ingots inside the steel mill to further processing

The Electric Arc Furnaces (= "EAF") (= the black ones in the middle) are converting scrap to steel.

The Basic Oxygen Converter (= "BOF") (the white one machine in the foreground on the left) is converting liquid iron to steel.

Therefore, Haslingen Steel Mill can produce high quality steel both from scrap, and from iron.

Pit Furnaces

Temperature processing of steel

the blocks of nearly liquid steel are stripped from the ingots

After the temperature processing the blocks are transported to the blooming mill (not modeled on the Haslingen Steel Mill module due to needed area, at least not at the moment.)

Gasometer

Gas, a by-product of the processing, is stored in this gasometer

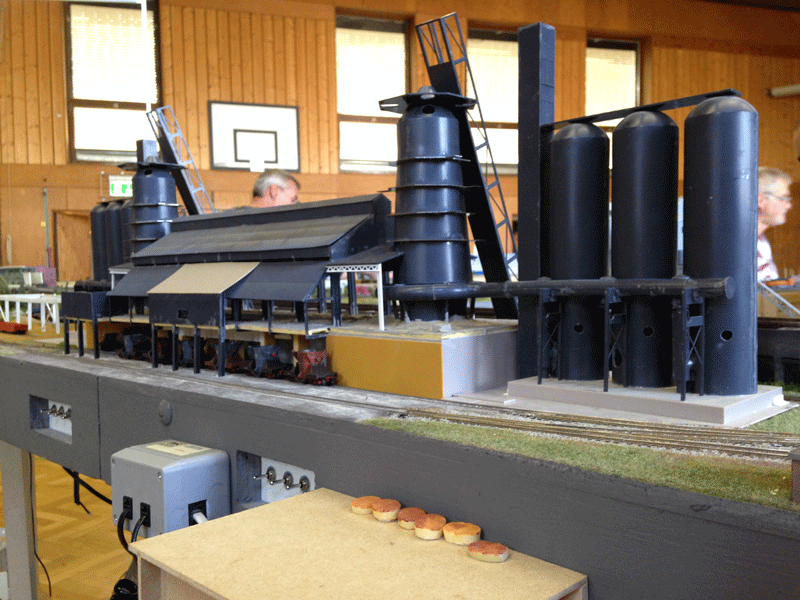

in the background:

left: slag processing plant

middle: Blast Furnace

Update 2015-12-31: Progress of Blast Furnace Building

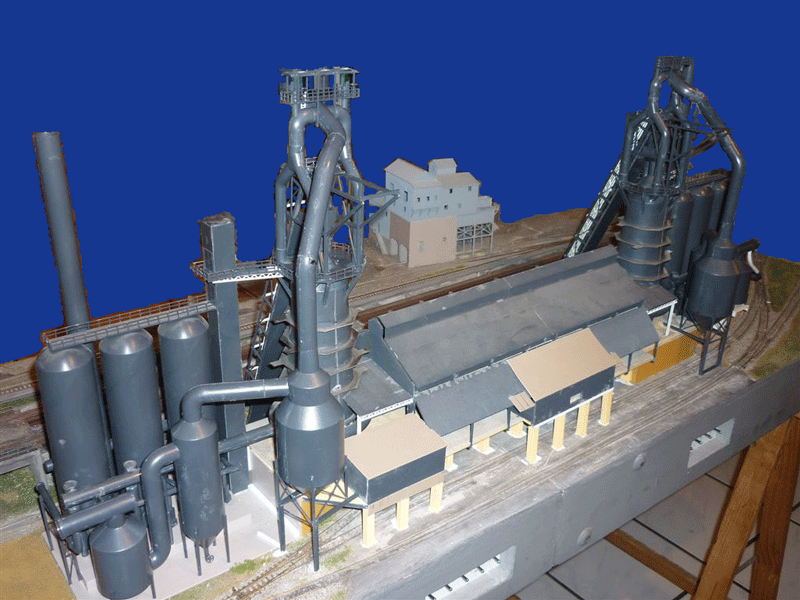

Blast Furnace, Status Dec. 2015

photo (c) 2051: Jan (blue background: photoshop by Michael)

International FREMO N Convention, Praha (CZ), October 2015

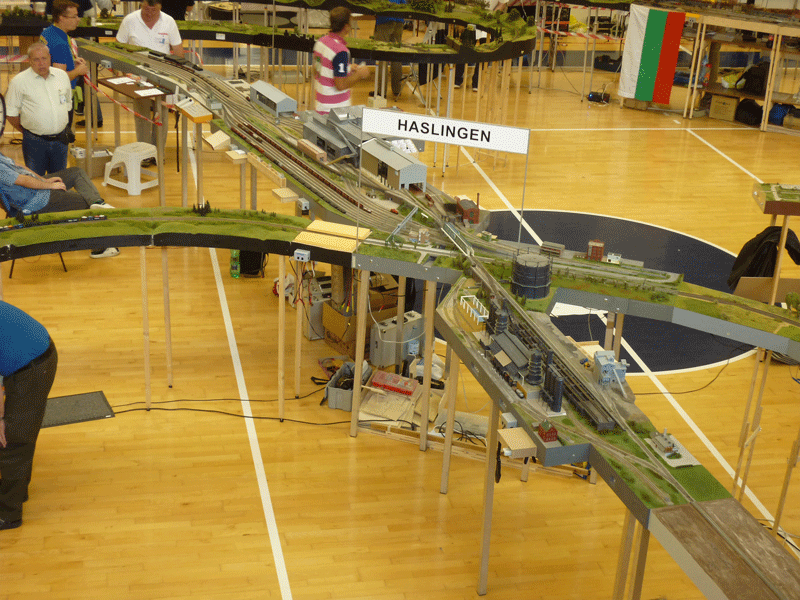

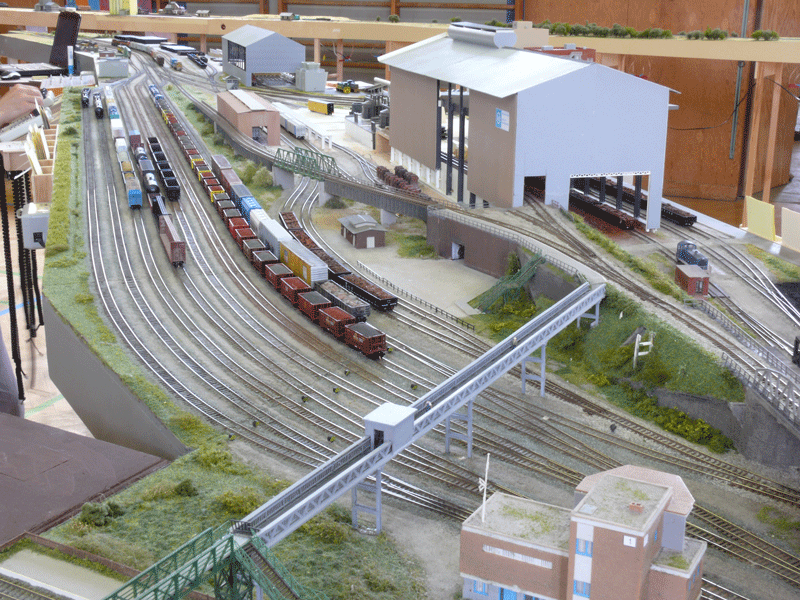

Haslingen overview, Praha (CZ), 2015 Oct. View from balcony (Photo: Jan Schirling)

Text by Michael Homberg and Jan Schirling (CEO + Builder of Haslingen Steel Mill)
